PC honeycomb air flow straightener for commercial refrigeration display showcase

Polycore the air flow straightener (also called air flow deflector, air curtain, honeycomb filter) characteristic plays a very important role on the performance of vertical and stand refrigerated display case. The transient temperature of the display case shelves was measured for studying the temperature variation and distribution in the vertical display case by changing the number and the velocity of air deflector. The result shows that it is necessary to keep three air deflectors in a vertical open low temperature display case and the performance of the display case can be improved by selecting reasonable air deflector velocities.
Polycore PC honeycomb has excellent compressive strength act as air flow straightener in refrigerated display cases.
Polycore Technology provide air flow straightener has excellent properties:
1. Core uniformality, inside smoothness, cleanness, surface level off.
2. PC raw material is safe for using as air deflector in showcase.
3. Lower shrink rate .

Price: $ 0
Discount Price: $ 0
  • PC3.0/PC3.5/PC6.0
  • Polycore
  • 3926909090
Quantity:

Product Description

Qingdao Polycore Technology Co.,ltd is experter of PC honeycomb air flow straightener manufacturer in China. Polycore  air flow straightener adopted first grade polycarbonate granule with experienced staff to make out excellent PC honeycomb act as air flow straightener in commercial refrigeration display showcase.


Polycore the air flow straightener (also called air flow deflector, air curtain, honeycomb filter) characteristic plays a very important role on the performance of vertical and stand refrigerated display case. The transient temperature of the display case shelves was measured for studying the temperature variation and distribution in the vertical display case by changing the number and the velocity of air deflector. The result shows that it is necessary to keep three air deflectors in a vertical open low temperature display case and the performance of the display case can be improved by selecting reasonable air deflector velocities.

Polycore PC honeycomb has excellent compressive strength act as air flow straightener  in refrigerated display cases.

Polycore Technology provide air flow straightener has excellent properties:

1. Core uniformality, inside smoothness, cleanness, surface level off.

2. PC raw material is safe for using as air deflector in showcase.

3. Lower shrink rate when temperature drop to -30 degree. This is very important for durable life of air flow straightener and provide installation safety for showcase manufacturer and supermarket operator.

Polycore common corecell diameter  supplying are 3.0mm, 3.5mm ,4.0mm and 6.0mm,most popular in supplying are 3.5mm and 6.0mm. If client need other corecell Polycore can make it too. Common length is within 1250-1260mm,width and thickness is made according to customer requirement. There are transparent,grey can be selected as color.

Polycore PC honeycomb has passed SGS examination and got ROSH,REACH certificate.

Polycore are long term supplier to Carrier,Haier,Sanyo,Arneg and many other famous display showcase manufacturer in global. With excellent products quality and reasonable price Polycore got more and more client's satisfactory and favorable reputation.

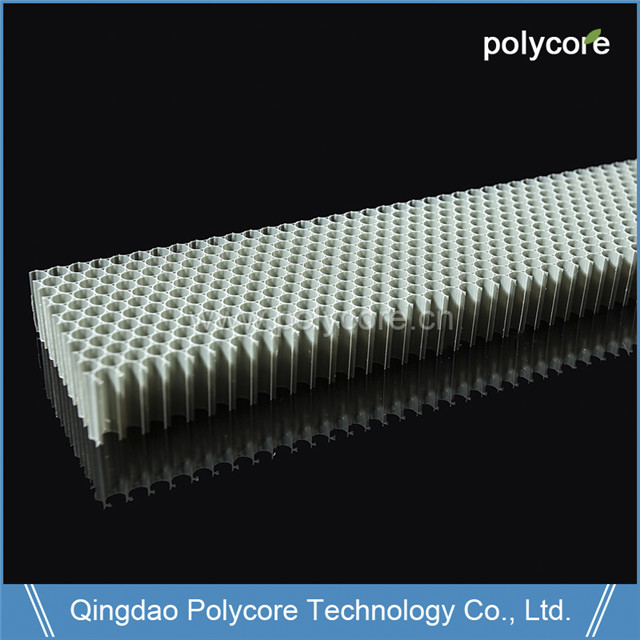

air straightener PC3.5 grey

                                      Air straightener PC3.5 grey

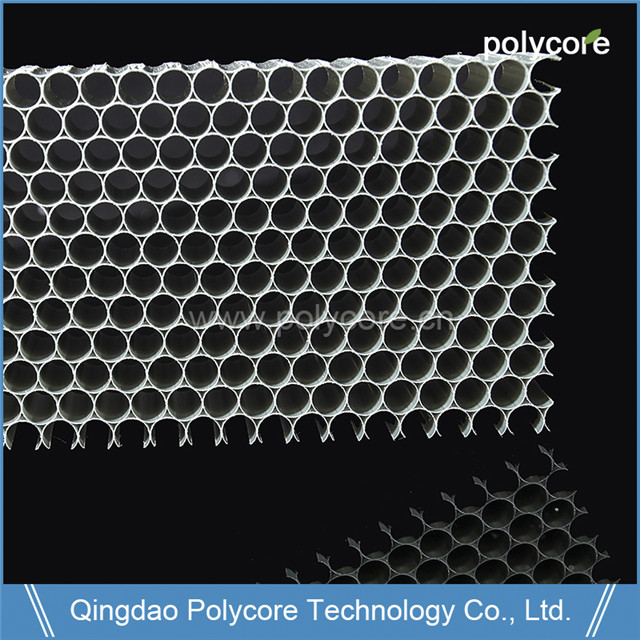

air straightener PC6.0 grey

                           Air straightener PC6.0 grey

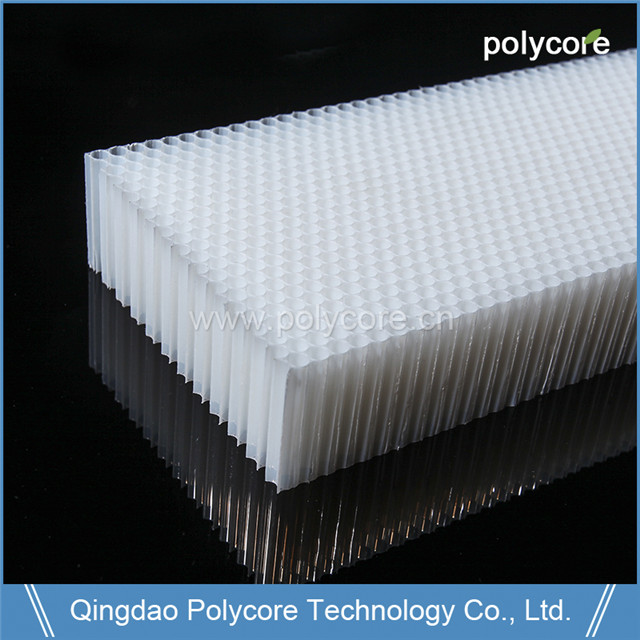

air straightener PC3.0 white

                               Air straightener PC3.0 white

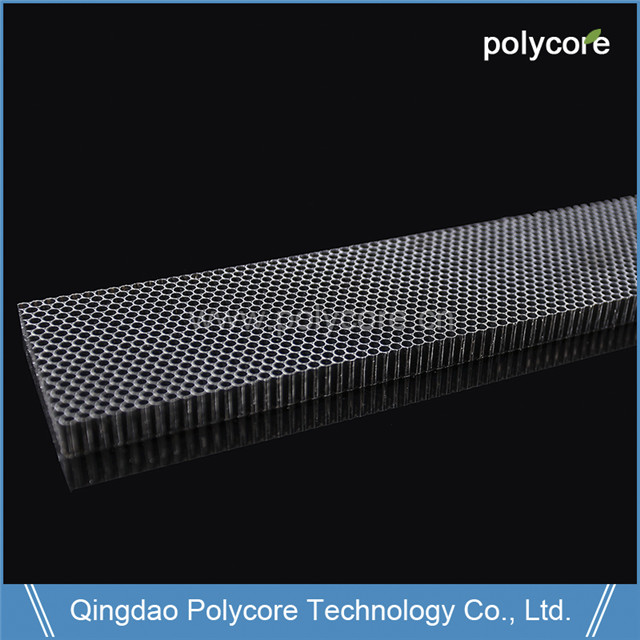

air straightener PC3.5 black

                         Air straightener PC3.5 black

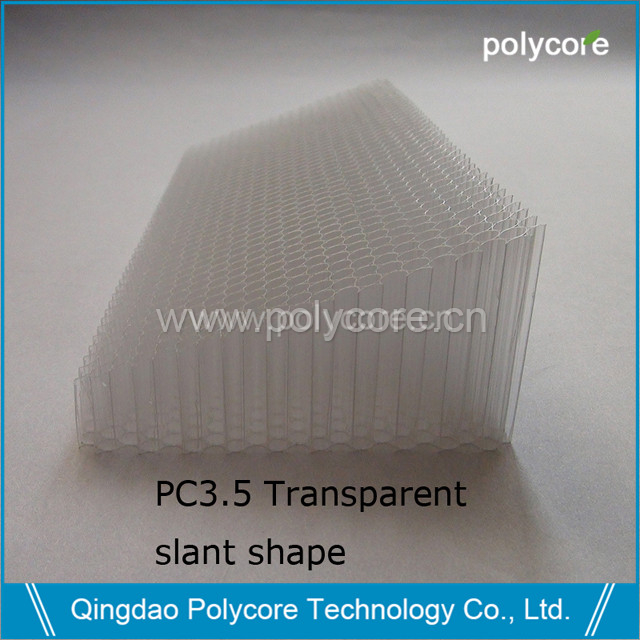

Air straightener PC3.5 slant shape

                        Air straightener PC3.5 transparent slant shape

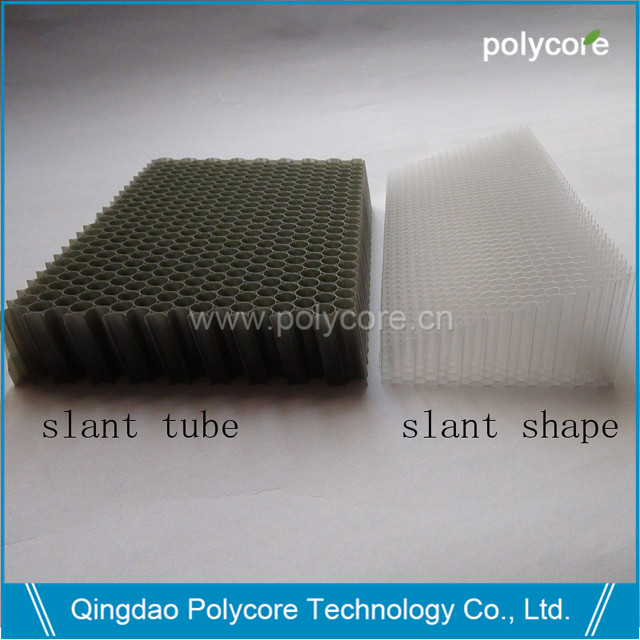

air straightener PC6.0 slant tube

               Air straightener  slant tube and slant shape

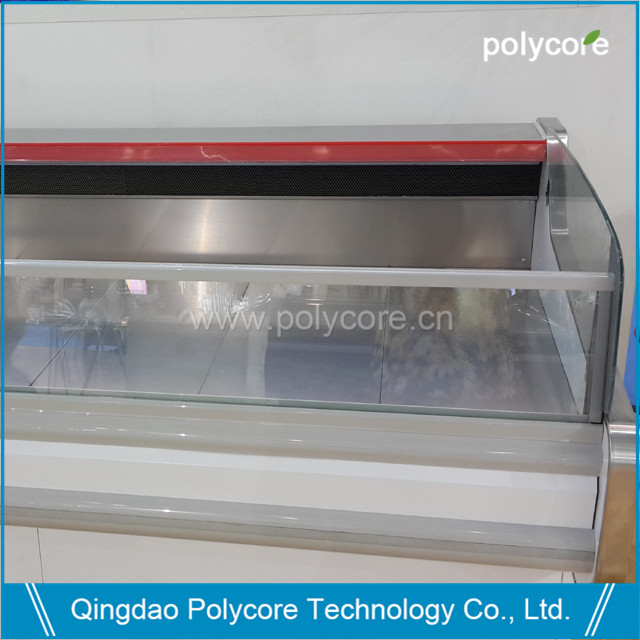

air straightener in horizontal showcase.jpg

               Polycore PC honeycomb air straightener in horizontal showcase

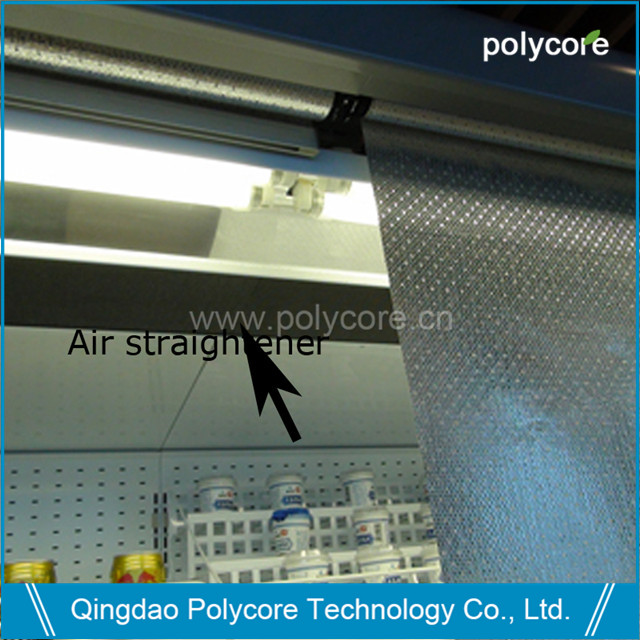

air straightener in vertical showcase.jpg

                   Polycore PC honeycomb air straightener in vertical showcase

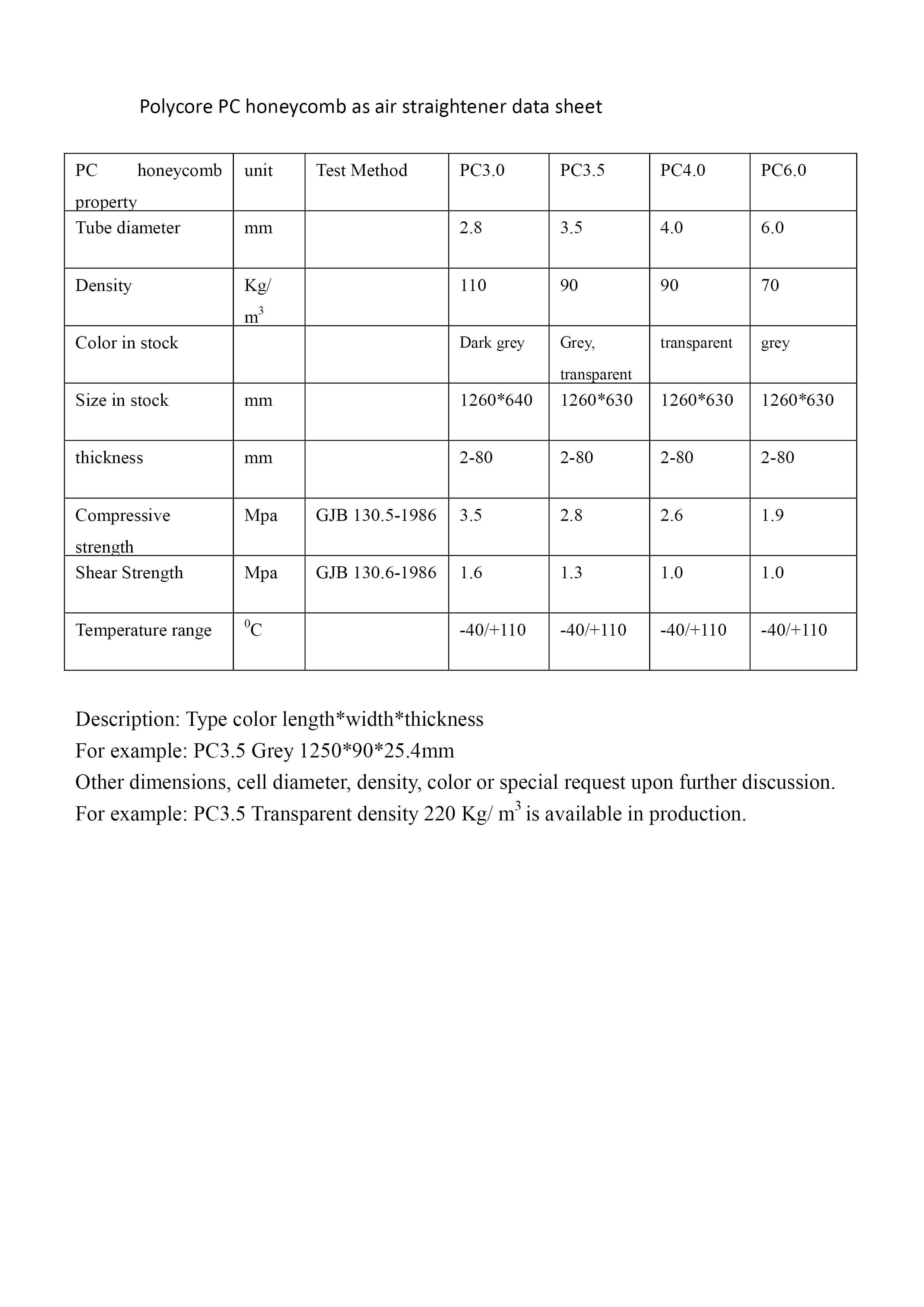

Technical Data Sheet

Polycore PC honeycomb as air straightener data sheet.jpg
