PP honeycomb sheet as light weight stiffness strength waterproof core material in floor,wall,partition of transportation vehicle

Polycore polypropylene (PP) honeycomb reportedly provides greater strength-to-weight ratio than traditional polyaramid or aluminum honeycombs. The cells of the PP honeycomb are essentially circular rather than hexagonal and are fused together rather than glued. The recyclable honeycomb can be thermoformed and cut to shape easily has energy-absorbing and sound- and vibration-damping properties, and is resistant to fungus, rot, chemicals and moisture.
Polycore PP honeycomb sheet laminated with polyester tissue on both sides. This allow better bonding of the honeycomb to different surface panel. In addition to the tissue, honeycomb can laminated with a layer of PP film . The film under the tissue acts as a barrier to prevent resin leaking into the core thus save resin consumption in next assembly process Besides there is more stiffness plastic sheet with more thicker tissue.

Price: $ 0
Discount Price: $ 0
  • PP8T40F
  • Polycore
  • 3926909090
Quantity:

Product Description

Polycore polypropylene (PP) honeycomb reportedly provides greater strength-to-weight ratio than traditional polyaramid or aluminum honeycombs. The cells of the PP honeycomb are essentially circular rather than hexagonal and are fused together rather than glued. The recyclable honeycomb can be thermoformed and cut to shape easily has energy-absorbing and sound- and vibration-damping properties, and is resistant to fungus, rot, chemicals and moisture.

Polycore PP honeycomb sheet laminated with polyester tissue on both sides.  This allow better bonding of the honeycomb to different surface panel.  In addition to the tissue, honeycomb can laminated with a layer of PP film . The film under the tissue acts as a barrier to prevent resin leaking into the core thus save resin consumption in next assembly process Besides there is more stiffness plastic sheet with more thicker tissue.

Polycore PP honeycomb sheet can be laminated with foam on the both sides and made to customer requirement,  so it can be widely used in sports activity provide safety protection for sportsman,  such as elbow protector,  kneepad,  chest protector,  helm,  crash helmet .Honeycomb core energy absorption property and high anti-pressing strength improve protection.

Light weight,  high compressive strength, anti-water, anti-humidity Polycore PP honeycomb sheet can be used as a core structure in the transportation fields such as aerospace, aircraft, boat, yacht, van, marine, automotive,  truck, rail and material handling, In this application. Polycore PP honeycomb sheet can lighten bare weight, boost velocity ,save fuel, whilst reinforce strength and dampen vibration.

In the construction fields such as  architectural, port, bridge, recreation, partition, ceiling, floor, wall, in this application, Polycore PP honeycomb sheet can speed up project process, dampen sound pollution, save energy cost.
In special fields such as  military, medical, oil tank cover, Equipment, electronic, pharmaceutical, food, consumer, trailer and a variety of other composite structures.  In this application, Polycore PP honeycomb sheet can provide special property to cater to special requirement such as electronic or Magnetics penetration ,anti-chemical corrosion, anti-fire, anti-water, cleanness and others.

For example: 20mm thickness Polycore PP honeycomb sheet weight is only 2.2-2.4kgs/square meter but its compressive strength high to 2.0Mpa.
Polycore supply PP honeycomb sheet dimension 1200x2400mm,1220x2440mm,1150x2300mm (for exporting container), max size within 1250mmx2600mm.
Thickness from 4mm to 200mm.Common thickness in practice from 8mm to 60mm.

For Technical parameter please contact Polycore people to ask for.
There are model PP8-80T30,PP8-80T30F,PP8T40,PP8T40F,PP8T40DF for selection.


Model Core sizedensityWith tissueWith film
PP8-80T308mm85kgs35g/sq.mrno
PP8-80T30F8mm85kgs35g/sq.mr50g/sq.mr
PP8T408mm95kgs45g/sq.mr50g/sq.mr
PP8T40F8mm95kgs45g/sq.mr120g/sq.mr
PP8T40DF8mm95kgs45g/sq.mr200g/sq.mr

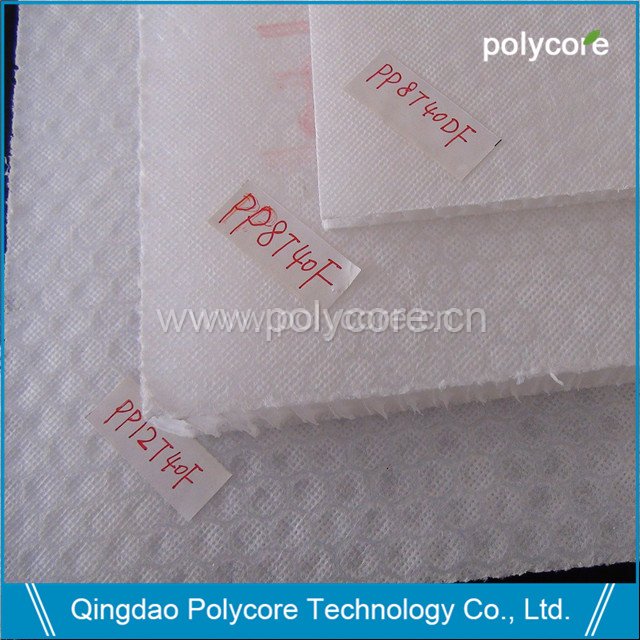

                   PP honeycomb sheet model PP8T40F

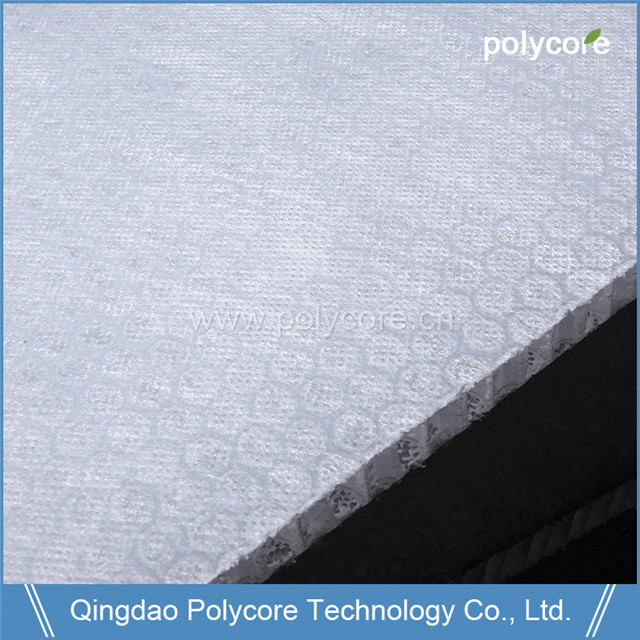

Polycore pp honeycomb sheet


                   PP8T40F

Polycore PP honeycomb core and sheet

                     PP honeycomb core and sheet

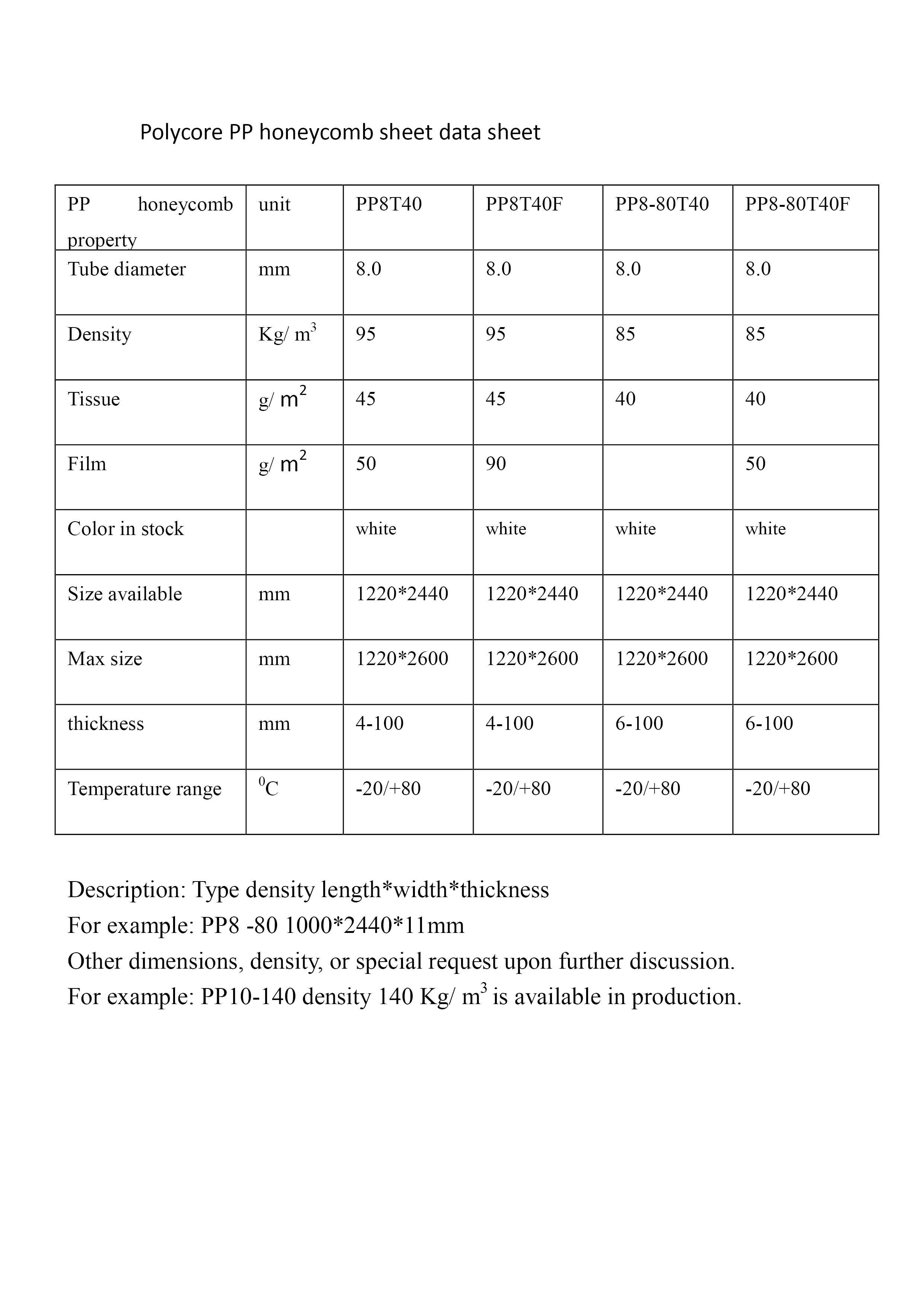

Technical Data Sheet

Polycore PP honeycomb sheet data sheet.jpg
