F3000 series of window curtain fabric- heating reflect fabric

Polycore window curtain fabric, Sun-reflected Fabric with high-tech materials reflect sunlight, using a mirror reflection principle, light reflective layer is formed by a special knitting technology with thermal insulation, UV protection and other functions.
Instinct with the sun reflecting foil characteristics, Polycore window curtain fabric can effectively block heat transfer, indirectly reduce the indoor temperature, reducing the frequency of operation of the air conditioning compressor, really Being able to do energy saving, to provide people with a comfortable and bright environment in living.
  • F3000 series

  • Polycore

  • 54077300

Availability:
Quantity:

Product Description

 window screen fabric

Polycore Window curtain fabric, Sun-reflected Fabric with high-tech materials reflect sunlight, using a mirror reflection principle, light reflective layer is formed by a special knitting technology with thermal insulation, UV protection and other functions.
Instinct with the sun reflecting foil characteristics, Polycore window curtain fabric can effectively block heat transfer, indirectly reduce the indoor temperature, reducing the frequency of operation of the air conditioning compressor, really Being able to do energy saving, to provide people with a comfortable and bright environment in living.

Window curtain fabric F3000 series with following technical data for reference. Now most popular model in market is F3001.


Feisl sun-reflected fabric which is based on the principle of specular reflection employs high-tech materials and advanced knitting technology to form a light-reflecting layer. It has advantages such as heat insulation,UV protection etc. As Aluminum foil has the characteristics of reflect sunlight, which could effectively block heat transfer, indirectly reducing indoor temperatures and reduce the frequency of operation of the air conditioning compressor and energy saving, thus provides a comfortable and bright environment for human life.



MATERIALS:   POLYESTER/METALLIC YARN
SIZE:   2m 2.5m 3m 50m/VOLUME
WEIGHT:   230g/sq.m
STRUCTURE:   PLAIN WEAVE
OPENING RATE:   5%
COLOR FASTNESS :   6 ALOVE
ENERGY-SAVING COEFFICIENT:   ACCORDING TO THE REPORT
SURFACE TREATMENT:   NANO COATING
TENSILE STRENGTH:   WARP/LENGTH 350(N) WEFT/WIDTH 1600(N)
FLAME RETARDANT GRADE:   ACCORDING TO THE REPORT
APPLI CATION:   CAN BE USED FOR ROLLING SHUTTERS BLINDS, CEILING
BLINDS, ROMAN BLINDS, SCREEN CURTAINS AND SO ON

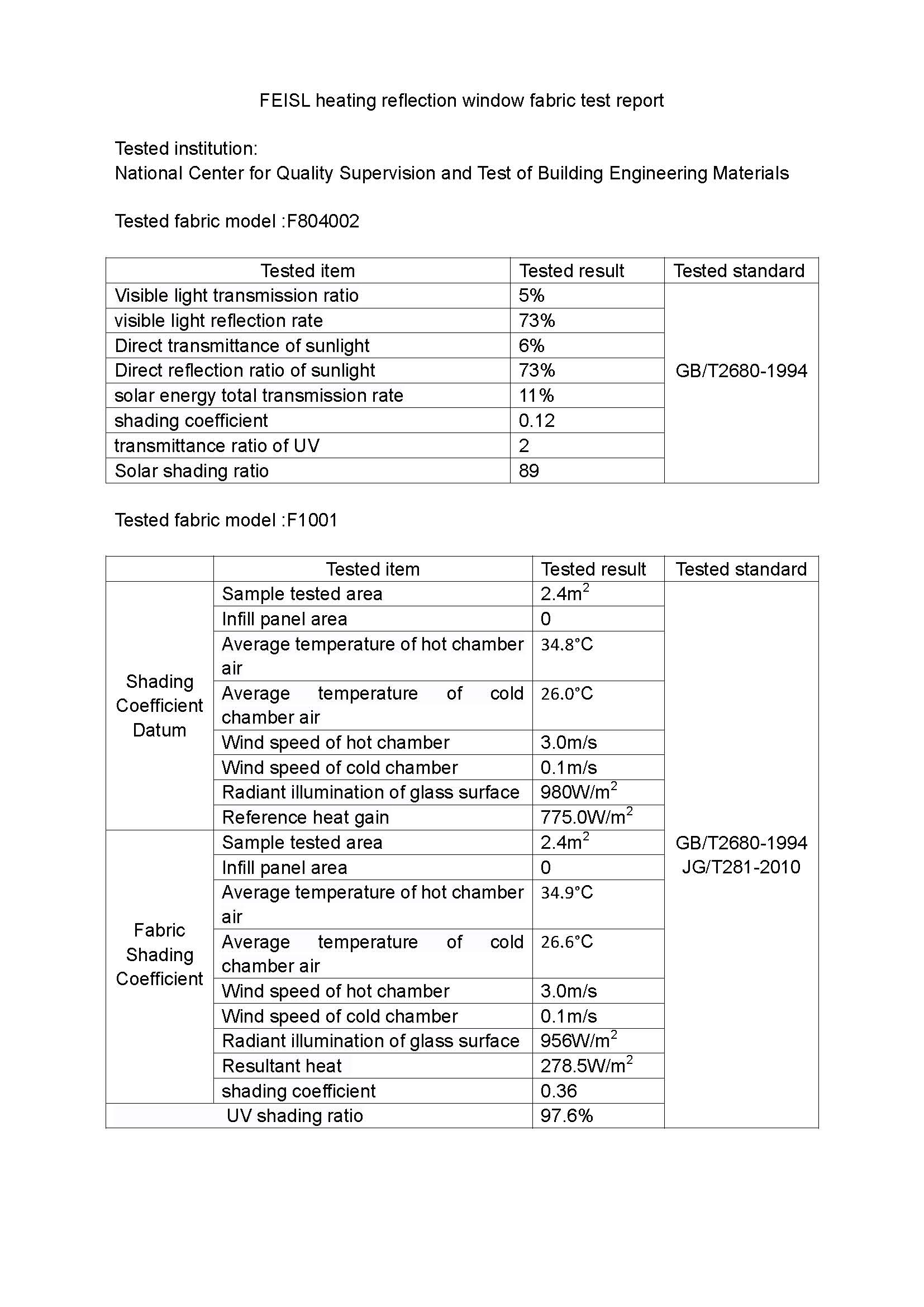

FEISL heating reflection fabric for window test report 1_1

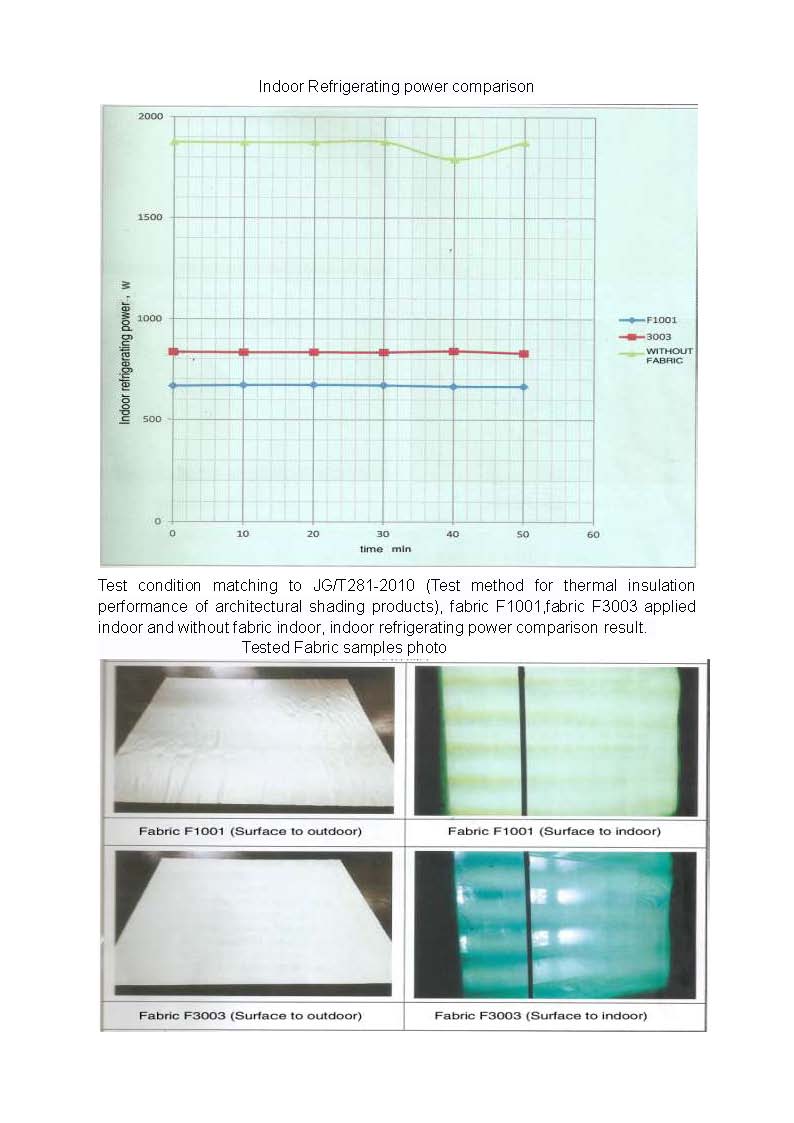

FEISL heating reflection fabric for window test report 2
  f3001

                          Model: 3001
f3002

                Model: F3002

f3003

                                  Model :F3003

f3004

                        Model: F3004

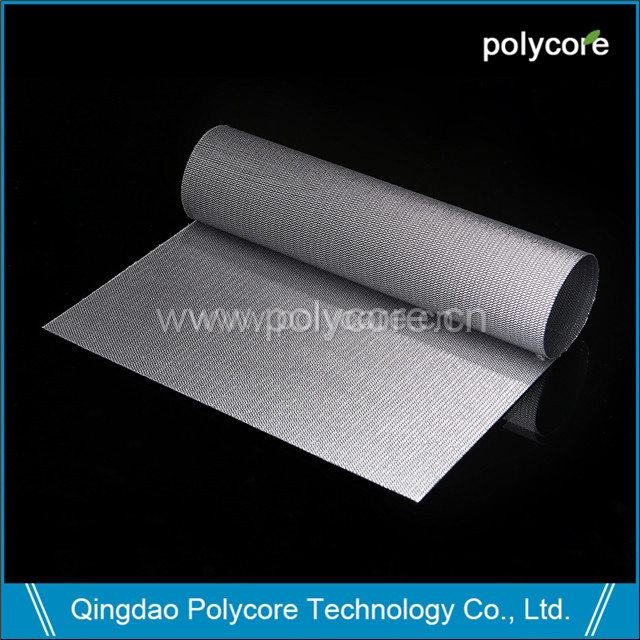

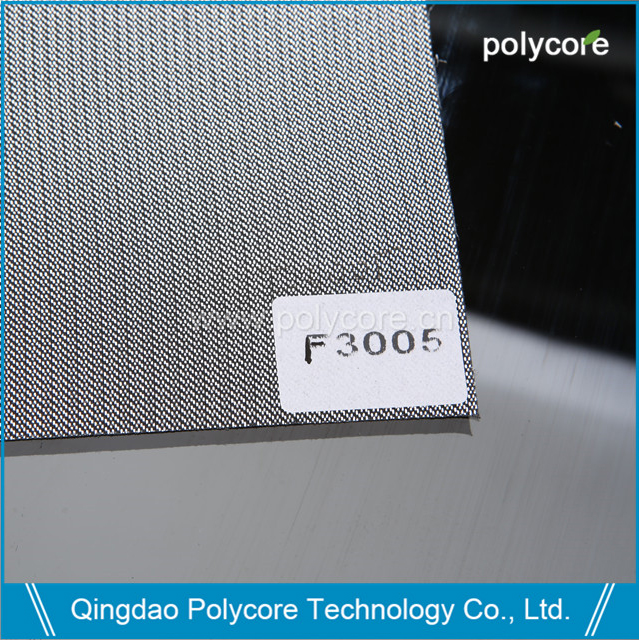

Polycore heating reflection fabric F3005 (2)

Polycore heating reflection fabric F3005 (1)
