F80400 Series of window fabric

Polycore window fabric, Sun-reflected Fabric with high-tech materials reflect sunlight, using a mirror reflection principle, light reflective layer is formed by a special knitting technology with thermal insulation, UV protection and other functions.
Instinct with the sun reflecting foil characteristics, Polycore window fabric can effectively block heat transfer, indirectly reduce the indoor temperature, reducing the frequency of operation of the air conditioning compressor, really Being able to do energy saving, to provide people with a comfortable and bright environment in living.
  • F80400 series

  • Polycore

  • 5407730

Availability:
Quantity:

Product Description



Polycore window fabric, Sun-reflected Fabric with high-tech materials reflect sunlight, using a mirror reflection principle, light reflective layer is formed by a special knitting technology with thermal insulation, UV protection and other functions.
Instinct with the sun reflecting foil characteristics, Polycore window fabric can effectively block heat transfer, indirectly reduce the indoor temperature, reducing the frequency of operation of the air conditioning compressor, really Being able to do energy saving, to provide people with a comfortable and bright environment in living.

Polycore window fabric F80400 series with following technical data for reference.

Feisl sun-reflected fabric which is based on the principle of specular reflection employs high-tech materials and advanced knitting technology to form a light-reflecting layer. It has advantages such as heat insulation,UV protection etc. As Aluminum foil has the characteristics of reflect sunlight, which could effectively block heat transfer, indirectly reducing indoor temperatures and reduce the frequency of operation of the air conditioning compressor and energy saving, thus provides a comfortable and bright environment for human life.



MATERIALS:   POLYESTER/ALUMINUM FOIL
SIZE:   2m 2.5m 3m 50m/VOLUME
WEIGHT:   145g/sq.m
STRUCTURE:   PLAIN WEAVE
OPENING RATE:   5%
REFLECTI VITY:   95%
SURFACE TREATMENT:   NANO COATING
TENSILE STRENGTH:   WARP/LENGTH 620(N) WEFT/WIDTH 1300(N)
TEARING STRENGTH:   WARP YARNS TORN 29(N) WEFT/WIDTH 63(N)
FLAME RETARDANT GRADE:   ACCORDING TO THE REPORT
APPLI CATION:   CAN BE USED FOR ROLLING SHUTTERS BLINDS ,CEILING
BLINDS, SCREEN CURTAINS AND SO ON

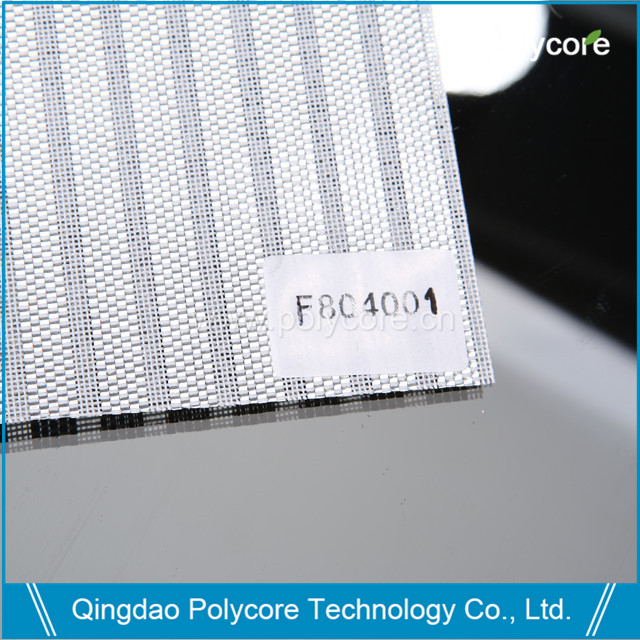

Polycore heating reflection fabric F804001 (2)
                                                  Model: F804001


Polycore heating reflection fabric F804002 (1)
                                                           Model: F804002

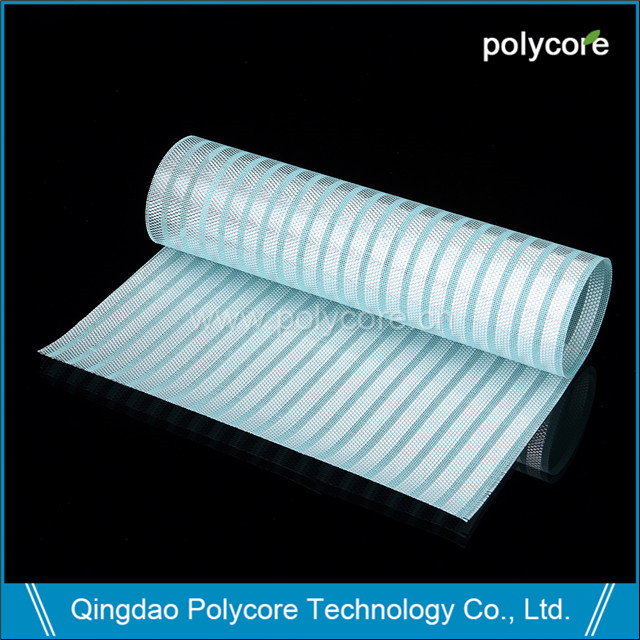

Polycore heating reflection fabric F804004 (1)
                                                        Model: F804004

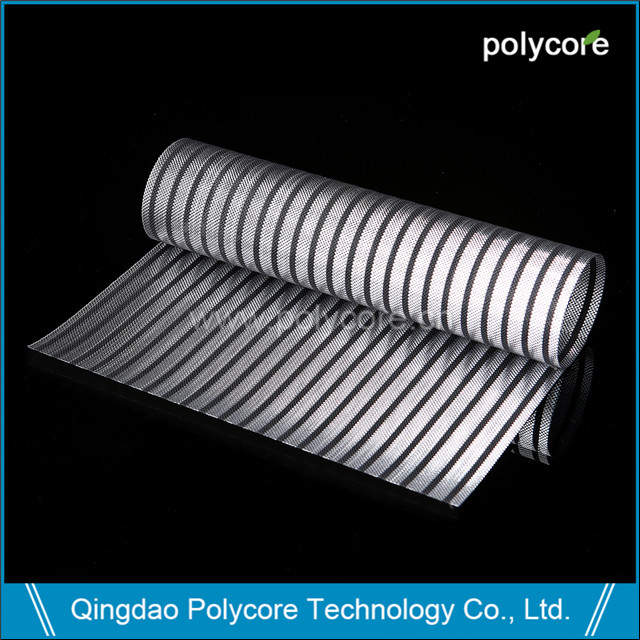

Polycore heating reflection fabric F804005 (1)
                                                           Model: F804005

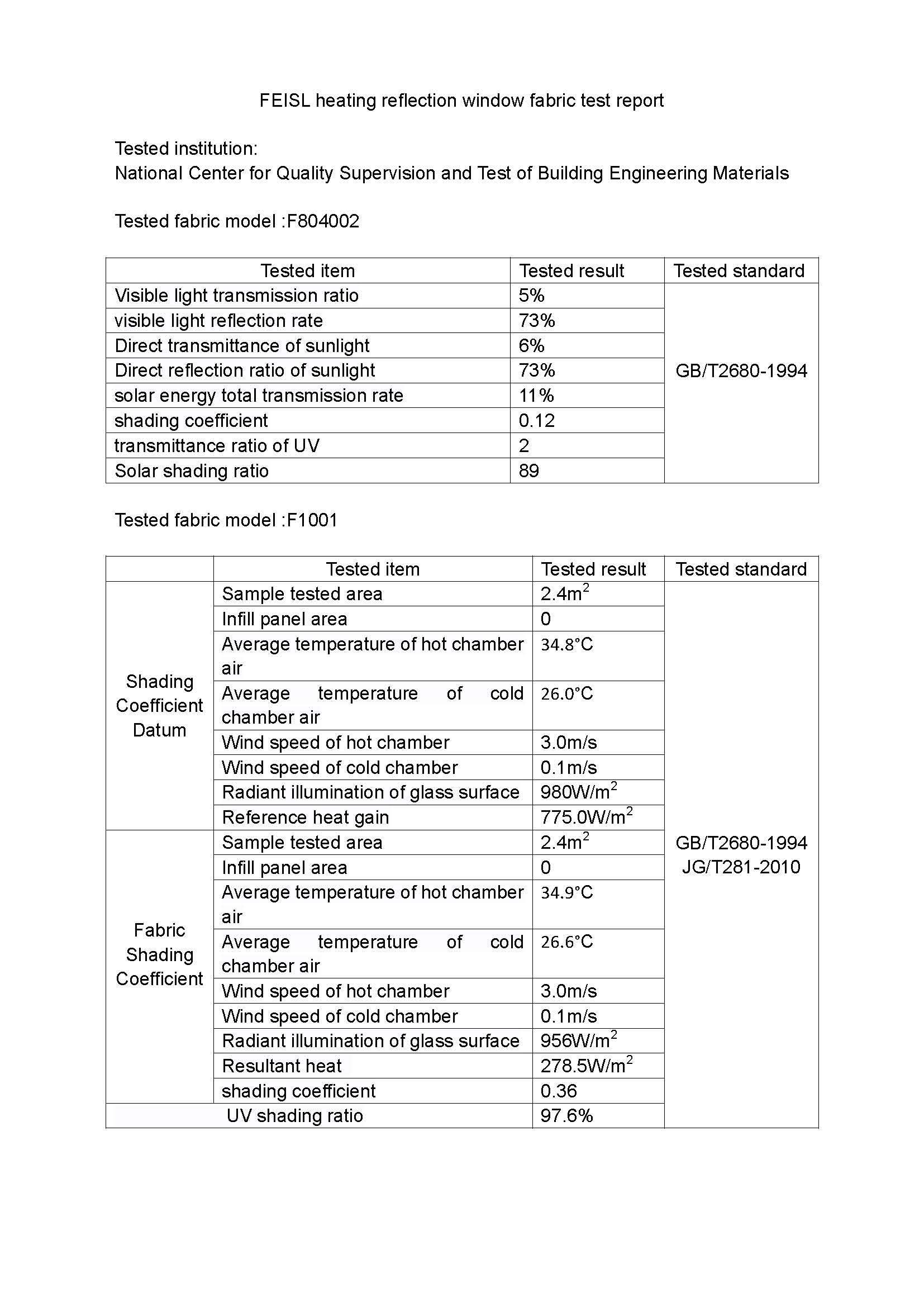

FEISL heating reflection fabric for window test report 1_1

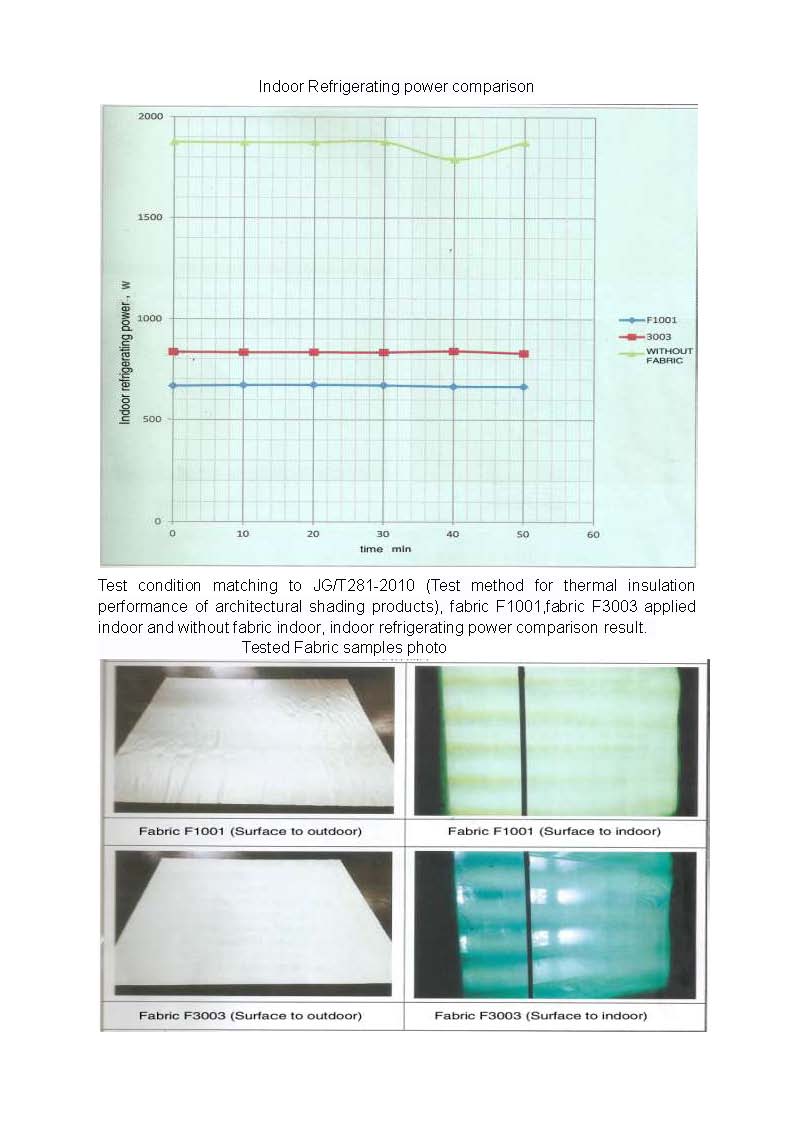

FEISL heating reflection fabric for window test report 2
