FRPan-fiberglass PP honeycomb sandwich panel

Qingdao Polycore Technology Co.,ltd PP honeycomb sandwich panel adopted PP honeycomb as core to make out light weight,stiffness strength sandwich panel applied into many business fields.

FRPan is Fiberglass pre-immerged resin sheet (FRP ) as skin panel on both sides, PP honeycomb as core. Resin adopted is Epoxy or Phenolic .They are composited from high pressure and heating by aero technology. There are about 60% fiberglass consumption in FRP skin ,so composite panel is more lighter in weight meanwhile more stiffness comparing with cold lamination,in later there are only less than 30% fiberglass adoption in FRP skin.
The features of Polycore PP honeycomb sandwich panel FRPan  are light weight, high stiffness, sound damping, fire-retardnat, quakeproof, insulation, environmental friendly.

FRPan PP honeycomb sandwich panel characteristics:

-- light weight stiffness strength
--corrosion,fungi, rot,chemical,moisture resistant
-- Sound ,vibration dampen
-- Easy assembe
-- Waterproof
-- excellent Electrical characteristics
-- excellent Magnetics characteristics

Polycore PP Honeycomb sandwich panel are applicable to the apartments and external walls of building and truck body, widely Used in boat, yatch, wind turbine, sports, tank cover and so on.

FRP surface thickness from 0.5mm to 3mm made according to clients request. Most commonly application in practice is 1.5mm and 2.0mm.

Uv-treatment, anti-slip surface, gel-coat treatment, painting treatment and so on can be made according to clients request. But because our lamination is heating lamination so Gel-coat or Painting treatment only can be made after composite panel finished so such treatment cost is higher than usually supplier. Considering such cost,we strongly suggest client select original skin or black skin ,the cost is competitive.

Standard specification: 1200*2400mm
Maximal specification: 5500*12000mm.

PP honeycomb sheet thickness from 4mm to 200mm,common in application from 6mm to 40mm. So FRP PP honeycomb composite panel thickness from 7mm to above. Commonly in practice composite panel thickness from 15mm to 40mm.Thickness: 8mm-100mm

Application:

FRPan is widely applied in chemical barrier to provide protection for tanks, pits, pipes and grates.
FRPan is widely applied in Marine as structural material such as hull, deck, bulkhead, tank, canopies and cases;
FRPan is applied in Tooling as fabricating tooling and moulds;
FRPan is applied in truck as wall, ceiling,floor, door;
FRPan is applied in wind turbine act as blades, canopy housing and rotor hoods;
FRPan is applied in sport as leisure, film set and decorative market;
FRPan is applied in corrosion to prevent and repair of metal and concrete surfaces;
FRPan is applied in chemical barrier to provide protection for tanks, pits, pipes and grates.
FRPan is applied in door,partition,ceiling,floor ,ground structural material.in buildin


                FRPan original skin

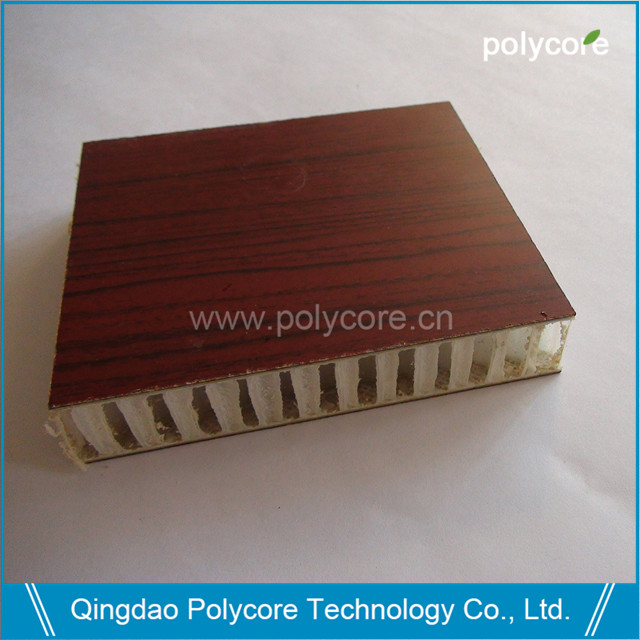

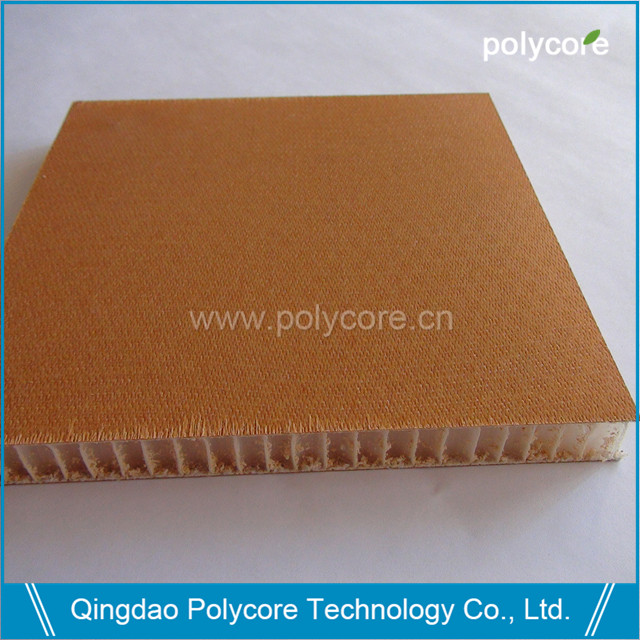

                         FRPan fire-retardant skin

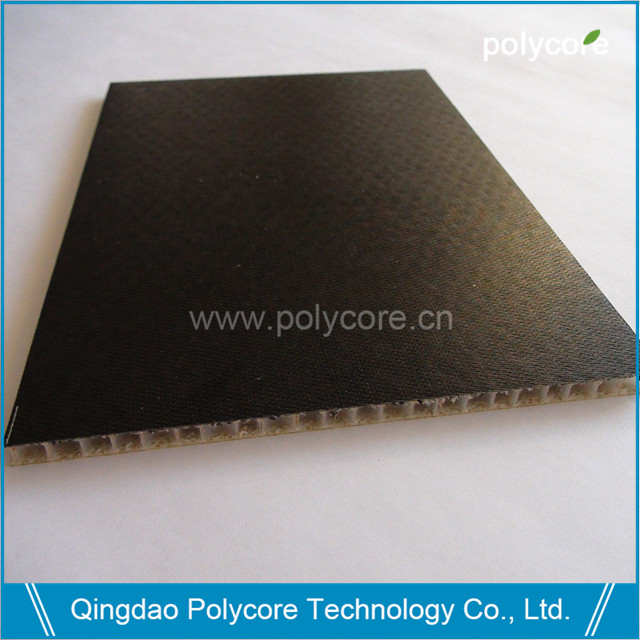

                 FRPan black skin


                          FRPan white skin

                                    FRPan laminated with anti-fire skin panel

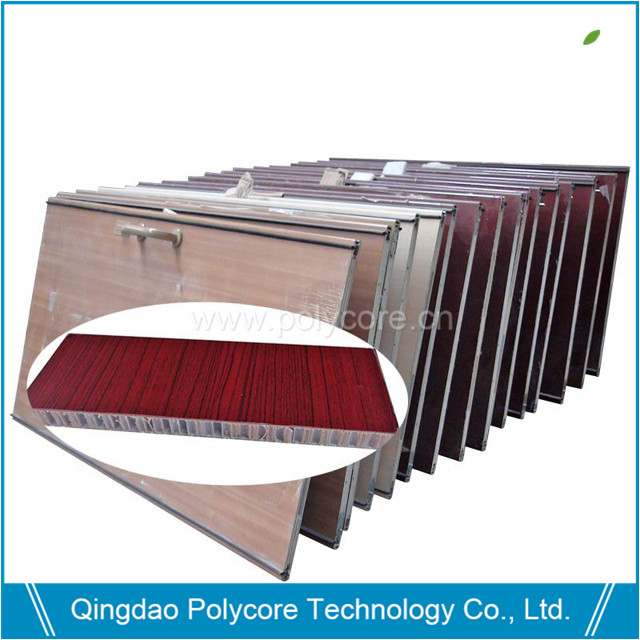

                     Honeycomb sandwich panel in door

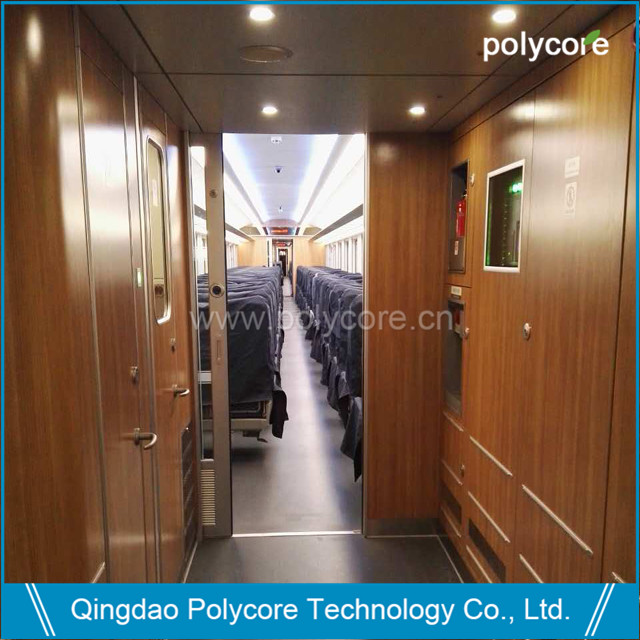

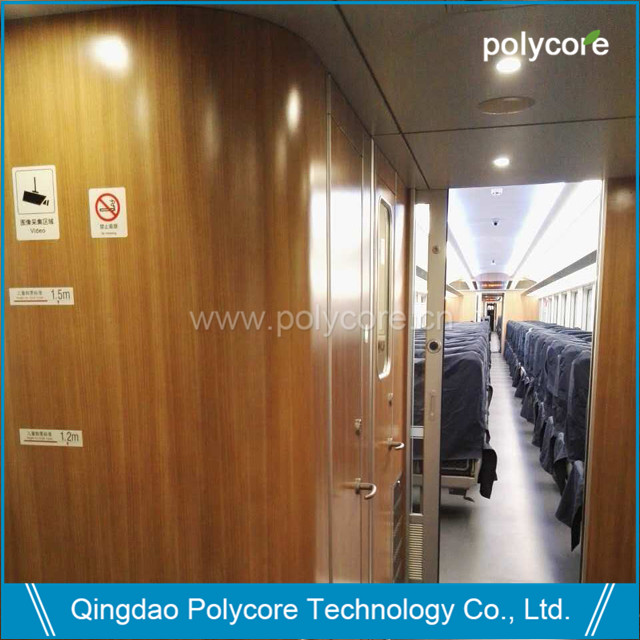

                                Honeycomb sandwich panel in train

For example:
Both sides with 1.5mm fiberglass skin, FRPan total thickenss 20mm,weight is 5.6kgs/sq.mr




           FRPan as door in train

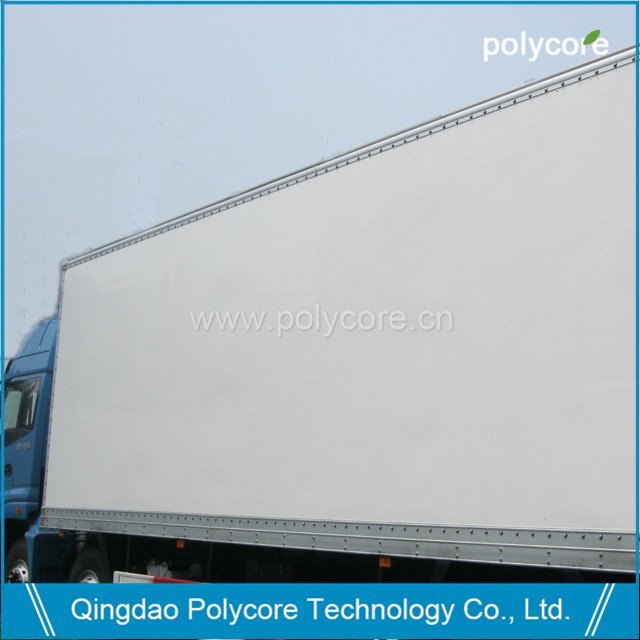

                         PP honeycomb sandwich panel as wall in van

                 PP honeycomb sandwich panel as door in van
