Scaffolding panel-waterproof light weight stiffness strength honeycomb sandwich panel

Qingdao Polycore Technology Co.,ltd scaffoling panel adopted PP honeycomb as core material,fiberglass as skin to make out light weight,stiffness strength,waterproof,anti-slip,movable,life stable scaffolding panel for building fields.
Fiberglass pre-immerged resin sheet (FRP ) as skin panel on both sides, PP honeycomb as core. Resin adopted is Epoxy or Phenolic resin.They are composited from high pressure and heating by aero technology. There are about 60% consumption in FRP skin ,so composite panel is more lighter in weight meanwhile more stiffness comparing with cold lamination ,in later there are only less than 30% fiberglass adoption in FRP skin.
The features of Polycore FRPan are light weight, high stiffness, sound damping, fire-retardant (only skin when requirement by client), quakeproof, insulation, environmental friendly.
Polycore Anti-slip FRP as skin surface PP honeycomb as core material to be heat lamination to act as scaffolding panel with following property:
Water proof

Model:
ANSAFRP1.5-PP8T40F-15
Brand:
Polycore
Code:
3926909090

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Qingdao Polycore Technology Co.,ltd scaffoling panel adopted PP honeycomb as core material,fiberglass as skin to make out light weight,stiffness strength,waterproof,anti-slip,movable,life stable scaffolding panel for building fields.

Fiberglass pre-immerged resin sheet (FRP ) as skin panel on both sides, PP honeycomb as core. Resin adopted is Epoxy or Phenolic resin.They are composited from high pressure and heating by aero technology. There are about 60% consumption in FRP skin ,so composite panel is more lighter in weight meanwhile more stiffness comparing with cold lamination ,in later there are only less than 30% fiberglass adoption in FRP skin.

The features of Polycore FRPan are light weight, high stiffness, sound damping, fire-retardant (only skin when requirement by client), quakeproof, insulation, environmental friendly.

Polycore Anti-slip FRP as skin surface PP honeycomb as core material to be heat lamination to act as scaffolding panel with following property:

Water proof

Light weight with stiffness strength ratio

UV-Resistance

Stable life

Easy handling and moving

Polycore Scaffolding panel edges can be sealed or open as per requirement, hole can be made to hand take off easily

Polycore Scaffolding panel Anti-slip surface skin thickness from 1.0mm to 3.0mm according to request. Most common in practice is 1.5mm.

Standard size:1200*2400mm

Thickness: 10mm to above. Most common thickness in practice are 12mm,15mm,18mm,20mm,25mm.

There are two kinds of Polycore scaffolding panel skin, one is mold skin,which anti-slip skin is made by mold pattern, such kind of scaffolding panel with beautiful, uniform pattern on surface, anti-slip skin usually 1.5mm.

Mold anti-slip skin is hardly with gel coat treatment on skin panel. Color is limited.

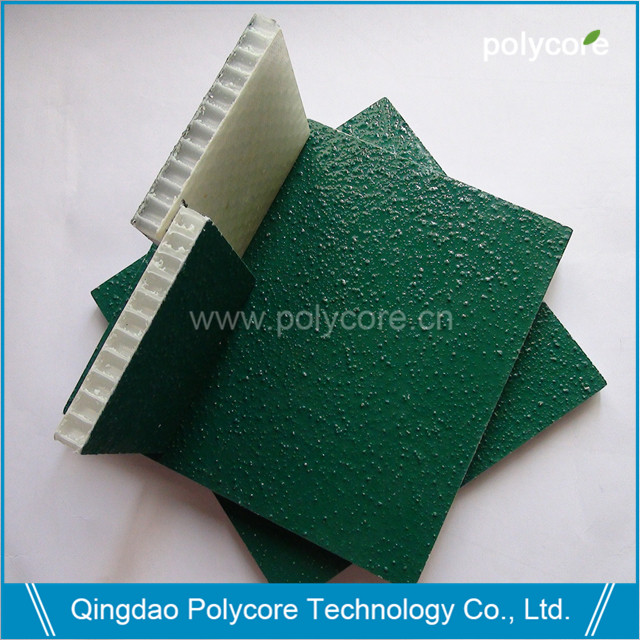

The other kinds of Polycore scaffolding panel skin is by sanding, which anti-slip is made by different size and shape sand ,such kind of scaffolding panel with irregular sanding, it's more durable after using in practice than mold anti-slip skin, it can be with different color and gel coat, so now such kind of Polycore scaffolding is more popular in practice.

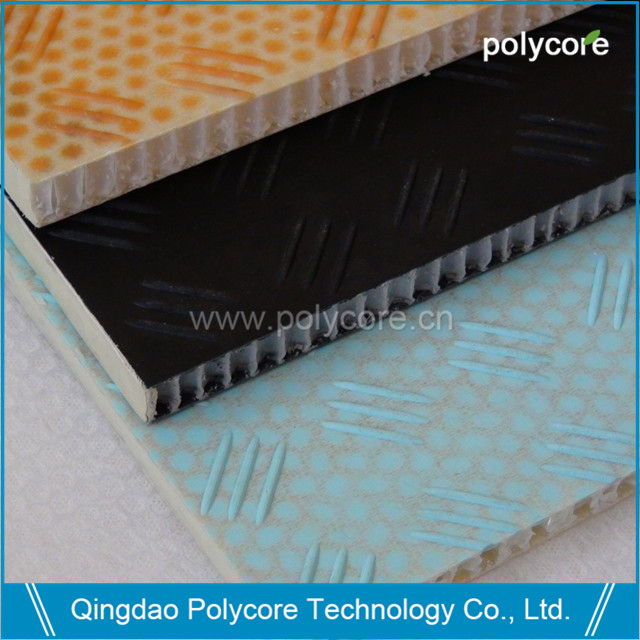

anti-slip scaffolding panel
