heating reflection fabric as window curtain

Instinct with the sun reflecting foil characteristics, Polycore window curtain fabric can effectively block heat transfer, indirectly reduce the indoor temperature, reducing the frequency of operation of the air conditioning compressor, really Being able to do energy saving, to provide people with a comfortable and bright environment in living
  • F1000 series

  • Polycore

  • 54077300

width 2m,2.5m:
Availability:
Quantity:

Product Description

Heating reflection Fabric with high-tech materials reflect sunlight, using a mirror reflection principle, light reflective layer is formed by a special knitting technology with thermal insulation, UV protection and other functions.
Instinct with the sun reflecting foil characteristics, Polycore window curtain fabric can effectively block heat transfer, indirectly reduce the indoor temperature, reducing the frequency of operation of the air conditioning compressor, really Being able to do energy saving, to provide people with a comfortable and bright environment in living.

Polycore Heating reflection fabric performance

Polycore sun-reflected fabric which is based on the principle of specular reflection employs high-tech materials and advanced knitting technology to form a light-reflecting layer. It has advantages such as heat insulation,UV protection etc. As Aluminum foil has the characteristics of reflect sunlight, which could effectively block heat transfer, indirectly reducing indoor temperatures and reduce the frequency of operation of the air conditioning compressor and energy saving, thus provides a comfortable and bright environment for human life.


F1001-11

       F1001

F1002

                          F1002

f1003

                    F1003

f1004

                          F1004

f1005

                          F1005

f1006

                      F1006

f1007

                        F1007

FEISL heating reflection window fabric test report


Tested institution:

National Center for Quality Supervision and Test of Building Engineering Materials


Tested fabric model :F804002


Tested item

Tested result

Tested standard

Visible light transmission ratio

5%

GB/T2680-1994









visible light reflection rate

73%

Direct transmittance of sunlight

6%

Direct reflection ratio of sunlight

73%

solar energy total transmission rate

11%

shading coefficient

0.12

transmittance ratio of UV

2

Solar shading ratio

89


Tested fabric model :F1001



Tested item

Tested result

Tested standard

Shading

Coefficient

Datum








Sample tested area

2.4m2

GB/T2680-1994

JG/T281-2010

















Infill panel area

0

Average temperature of hot chamber air

34.8°C

Average temperature of cold chamber air

26.0°C

Wind speed of hot chamber

3.0m/s

Wind speed of cold chamber

0.1m/s

Radiant illumination of glass surface

980W/m2

Reference heat gain

775.0W/m2

Fabric

Shading

Coefficient










Sample tested area

2.4m2

Infill panel area

0

Average temperature of hot chamber air

34.9°C

Average temperature of cold chamber air

26.6°C

Wind speed of hot chamber

3.0m/s

Wind speed of cold chamber

0.1m/s

Radiant illumination of glass surface

956W/m2

Resultant heat

278.5W/m2

shading coefficient

0.36

           UV shading ratio

97.6%

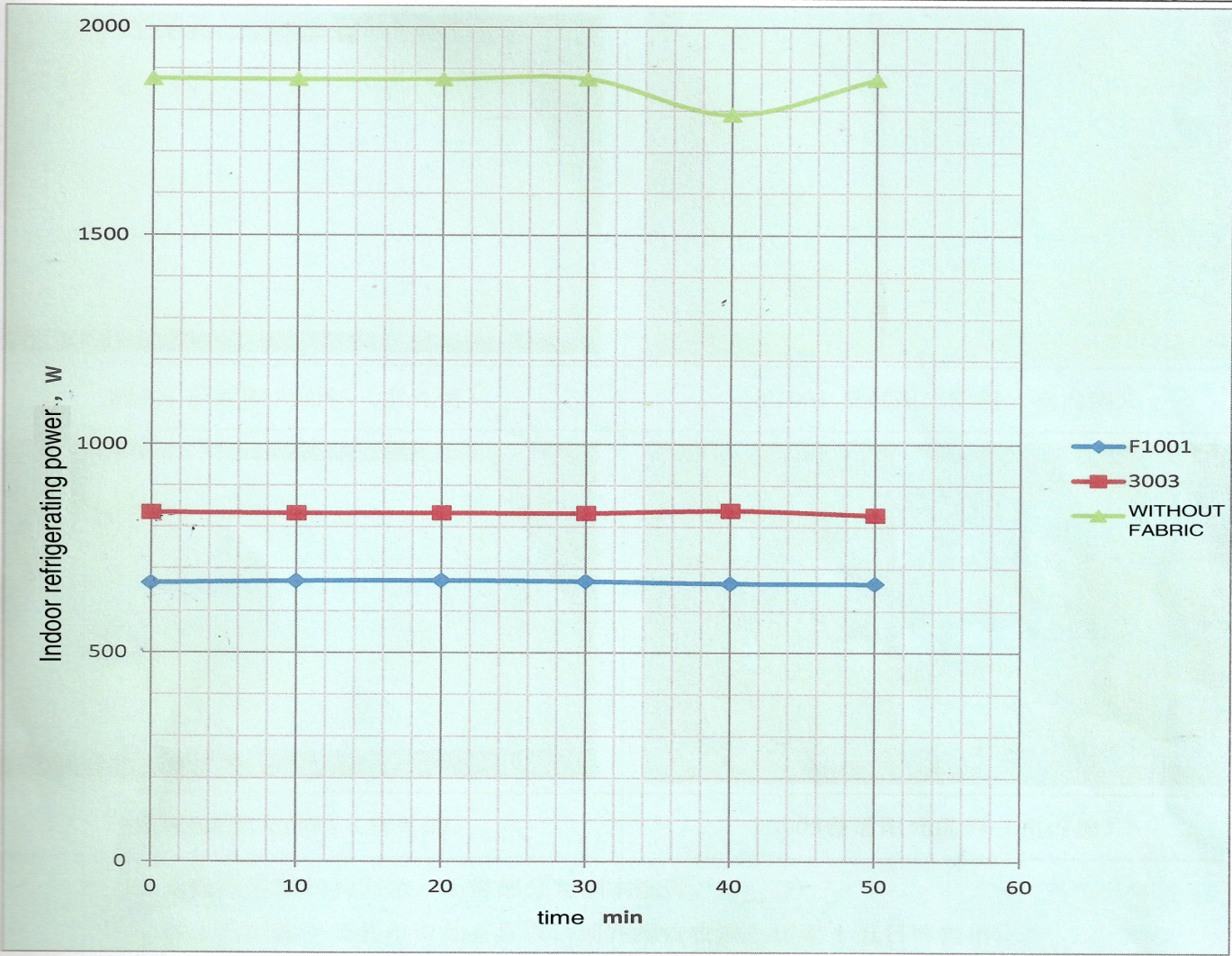

Indoor Refrigerating power comparison

Test condition matching to JG/T281-2010 (Test method for thermal insulation performance of architectural shading products), fabric F1001,fabric F3003 applied indoor and without fabric indoor, indoor refrigerating power comparison result.

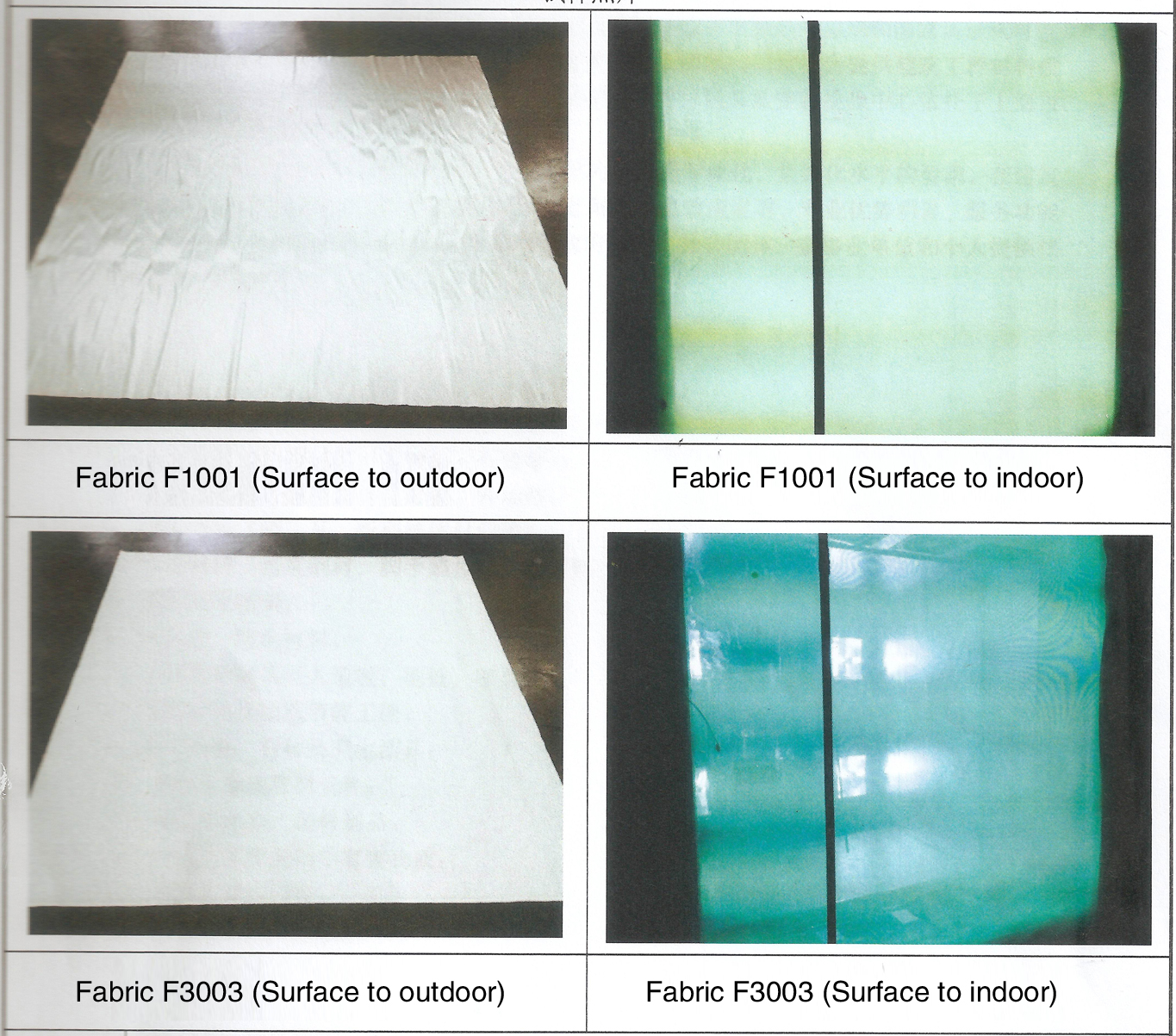

                 Tested Fabric samples photo


Technical Data Sheet

MATERIALS:   POLYESTER/METALLIC YARN
SIZE:   2m 2.5m 3m 50m/VOLUME
WEIGHT:   230g/sq.m
STRUCTURE:   PLAIN WEAVE
COLOR FASTNESS   6 ALOVE
ENERGY-SAVING COEFFICIENT:   ACCORDING TO THE REPORT
SURFACE TREATMENT:   NANO COATING
TENSILE STRENGTH:   WARP/LENGTH 350(N) WEFT/WIDTH 1600(N)
FLAME RETARDANT GRADE:   ACCORDING TO THE REPORT
APPLI CATION:   CAN BE USED FOR ROLLING SHUTTERS BLINDS, CEILING BLINDS, SCREEN CURTAINS AND SO ON TECHNICAL DATA
