transparent PC honeycomb sheet as core in light weight waterproof sandwhich panel for decoration

Polycore PC honeycomb  is specially three dimensional structure,so it's more steady and equilibrium than other two dimensional honeycomb structure. PC honeycomb core stand by tightly to provide excellent compressive strength,besides PC honeycomb holds following characteristics, so that bring widly application in different project and fields.

--  Lightweight stiffness strength
--  Insulated
--  Fire resistant (B2)
--  Corrosion resistant
--  Fungi resistant
--  Energy absorption
--  Excellent dielectric properties
--  Good thermal and electric insulator
--  temperature -40 + 110 celsius degree
--  Available transparent and in colors

Available:
Available core cell diameter: 3.0mm---8.0mm
Common dimension: 1260x640mm
(PC3.0,PC3.5,PC6.0,Grey color)
Standard dimension:1220*2440mm (PC6.0,PC8.0,Transparent color)
Max dimenstion:1250x3560mm (PC6.0,PC8.0)
Thickness: 2mm---80mm   Tolerance:+/-0.3mm
Common core cell diameter Polycore supplying are 3.5mm , 6.0mm and 8.0mm,if client need other core cell Polycore can make it too (order quantity is reach to 30cubic meters once time).

Application:
Polycore PC honeycomb can apply into window to save energy consumption, the window installed with transparent PC honeycomb can lessen heat loss 80 percent than common window;

Except for saving energy for building, PC honeycomb installation into building make building with more surprising in appearance, when watch building in different distance, or different altitude, or different time, the building looks so different and so dramatically.

So installed with PC honeycomb in building, the building become an art architecture.

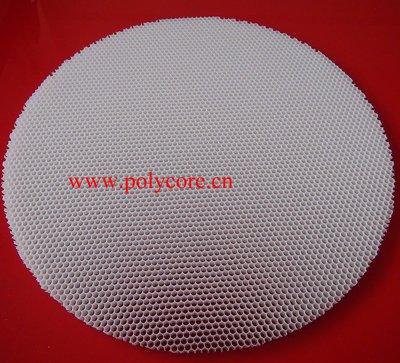

Polycore PC honeycomb can cut to round shape or designed shape to install into lighting system to get unique lighting appearance.

Polycore PC honeycomb can apply into camera to get special reslut photo; Polycore PC honeycomb can apply into lighting to get special result.
Polycore  PC honeycomb can directly apply into farm glasshouse; Polycore  transparent PC honeycomb plates can be applied in solar air heating, warming, drying.

Built-in Collecting and storing solar energy heater with Polycore PC honeycomb run in low or high sunshine efficiency is better than vacuum heater. Solar heater with PC honeycomb run stable in winter and price is cheaper than vacuum heater, easy to match to building roof.

Honeycomb activated carbon filter is composed of the Polycore PC honeycomb structural and activated carbon granules or powder. It is not only easy to be assembled but also competent for adsorption.  Mainly used for air purification, removing volatile organic compounds and the dust, smoke stench, toluene, polluting substances such as methanol in the air conditioner. Honeycomb active carbon filter widely used for air purifier, Air conditioner, Air-conditioning fan, The exhaust air production equipment and family health supplies.

Polycore PC honeycomb apply into wind tunnels — grilles, sandwich cores, radar, skylights, energy absorbing structures and TIM fields.

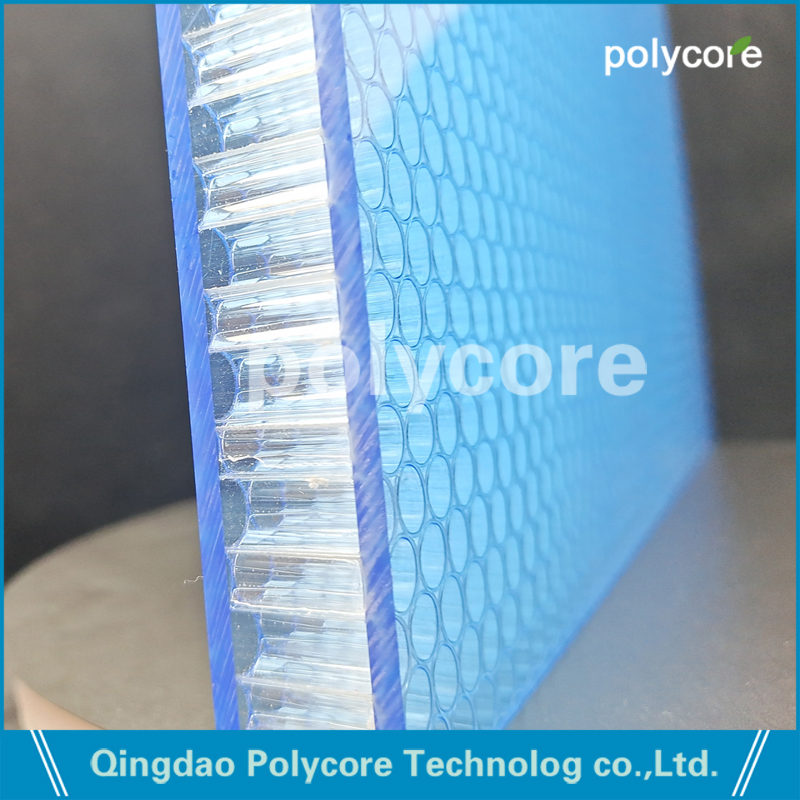

                             PC honeycomb in sandwich panel as core

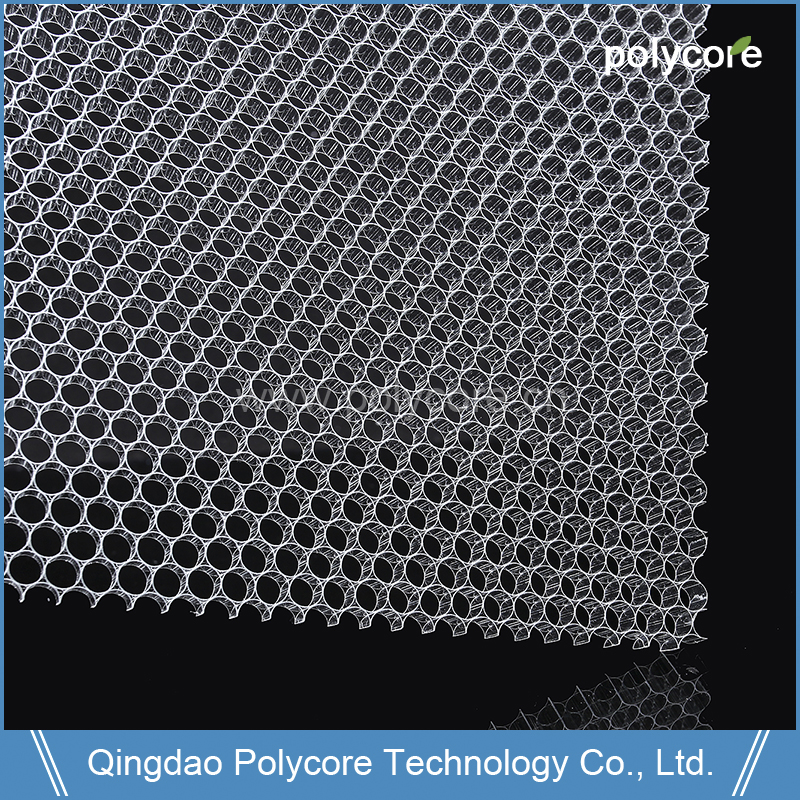

                         Transparent PC honeycomb core PC8.0

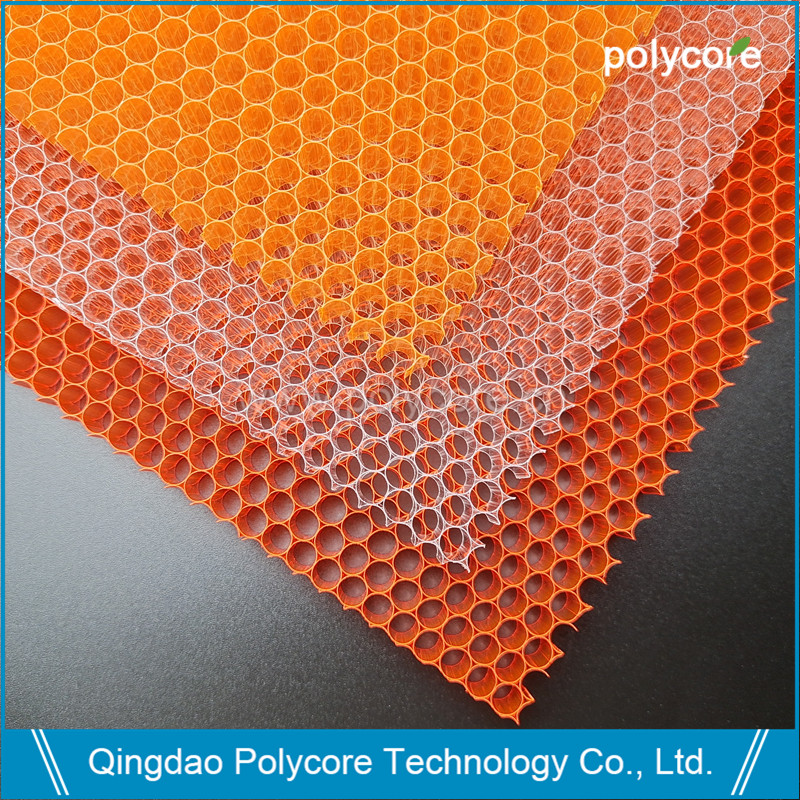

                                      Colorful PC honeycomb

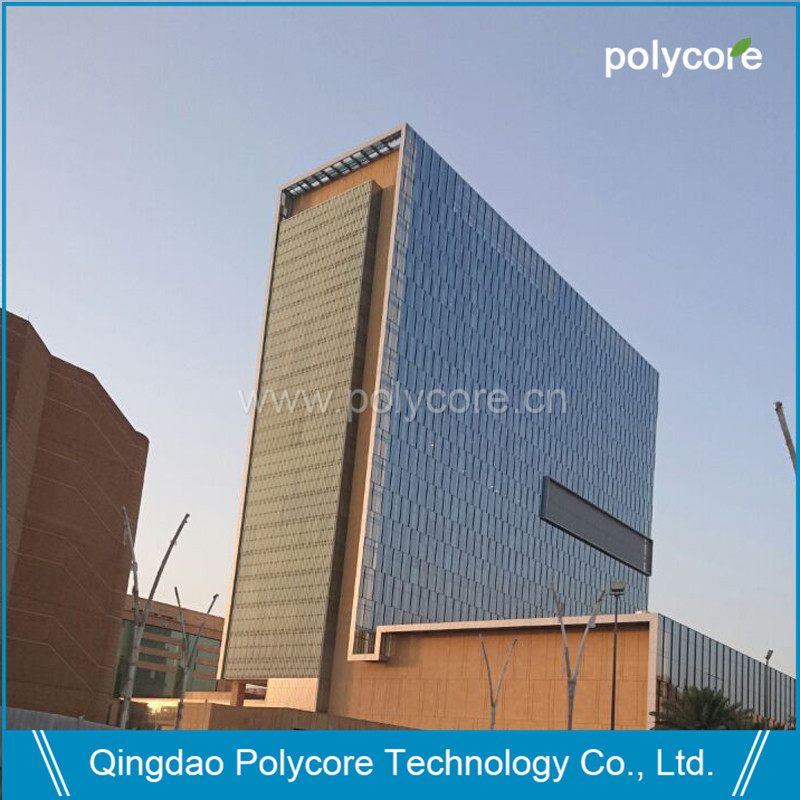

                                 Transparent PC honeycomb in building glass
